    Low RPM 500W Vertical Axis Wind Turbine For Residential

    Ask Lasest Price
    Brand Name : GreeF
    Model Number : GV-500W
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

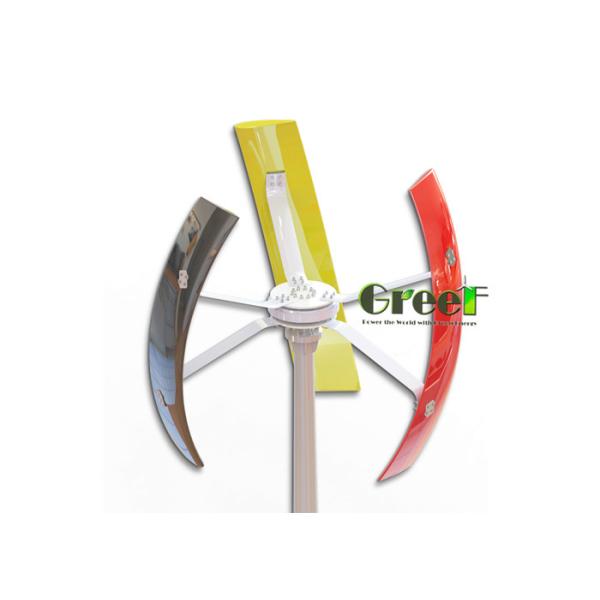

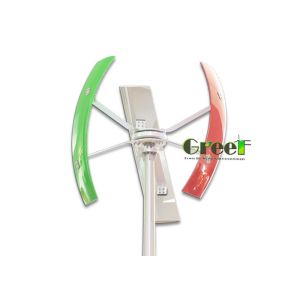

    Low RPM 500W Vertical Axis Wind Turbine For Residential

    500W Vertical Axis Wind Turbine
    Product Description

    500W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.

    GreeF 500W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.


    Project Show

    13 sets of Vertical Axis Wind Turbine and other project:



    ModelGV-500W
    Performance
    Rated Power500W
    Max Power650W
    Start Wind Speed1m/s (2.24mph)
    Rated Wind Speed10m/s(22.4mph)
    Working Wind Speed1-25m/s (2.24-56 mph)
    Safety Wind Speed50m/s(112mph)
    Physical Parameters
    Blades Length1.5M(4.92ft)
    Blades Rotor Diameter1.5M(4.92ft)
    Blades Material &QuantityFRP /3PCS
    Mill Weight64kg
    Tower Height6m(19.68ft.) (Optional)
    Generator Parameters
    Generator Type

    Axial Flux coreless disc permanent magnet direct drive generator

    (outer rotor)

    Rated Speed200RPM
    Start Torque<0.1N.M
    Option Voltage12-24V
    Protection MethodElectromagnetic Brake + PWM
    Protection GradeIP54
    Working Temperature-40-50℃
    Life time20 Years
    Application

    We can provide different system for customers according their request.

    For example, Off-Grid System:



    Our Services

    Generators are free 3 years warranty, All lifelong technical support and part cost supply.

    (1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
    (2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
    (3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
