Disc Low Rpm Wind Generator Coreless 48V 400Vac For Vertical Turbine

Ask Lasest Price
Brand Name :	GREEF
Model Number :	GDG
Certification :	CE
Price :	$299-12999
Payment Terms :	L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	15
Delivery Time :	25DAY

Add to Cart

Product Details
Company Profile

Disc Low Rpm Wind Generator Coreless 48V 400Vac For Vertical Turbine

Low Rpm Disc Coreless Permanent Magnet Generator For Vertical Wind Turbine

Technical Data

Model	GDG-1KW-180
Rated Power	1KW
Rated Rotate Speed	180 RPM
Option Rated Voltage	48V-400Vac
Efficiency	>89%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<0.3N/M
Rated Torque	56N/M
Phase Type	3 Phase
Structure	Outer rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	380mm
Generator Shell Length	241mm
Weight	32kg
Shaft drameter	50mm
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	NSK Deep groove ball bearing

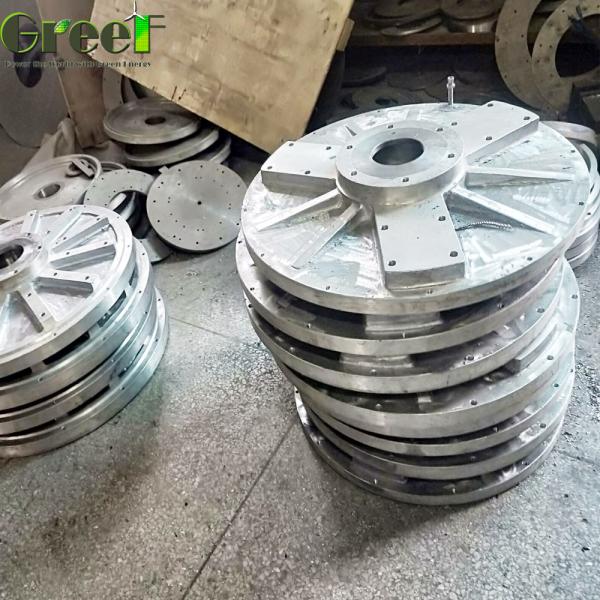

Drawing Sample and Pictures

Product Advantages

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M
2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss
8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.

Application

We can provide the complete generator system including Controller and Inverter:

On-grid Generator System

Off-grid Generator System

Buyer Reviews

Company Information

We are Top 3 suppliers of generators products on alibaba.com

--- Bureau Audited Supplier.

--- Products quality and on time delivery are guaranteed by alibaba.com.

--- 10 years’ experience engineer & QC team

--- 7days*24 hours on time service

--- Focus on after-sale service.

--- One stop customized system solution

--- Trade experience with more than 60 countries.

--- CE ,TUV, UL , RoHS, SAA certificated

--- OEM ,ODM are accepted

Generators are free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
